UNIT PRICE US$610.00
pecification

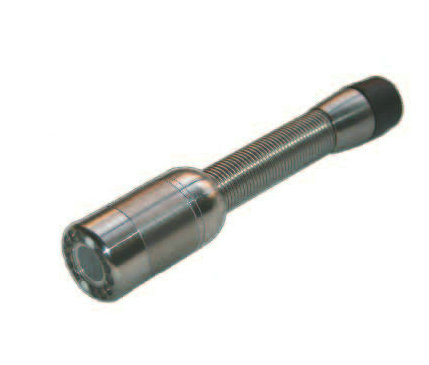

Camera
1. camera size：23mmx120mm front size:45mm
2．Camera case material：stainless steel house stainless steel 304
3. Camera glass material：sapphir glass
4. sensor size：1/4 inch
5．Total Pixels：PAL：720X576 NTSC: 720X480
6. view angle：120°
7. camera light：12PCS white LEDS
8. Special gold point touch connector
9. waterproof：IP68
10.camerawork current：100MA camara power supply：DC 12V
11. LEDS ADJUASTABLE
12．Work temperature：-10℃-50℃

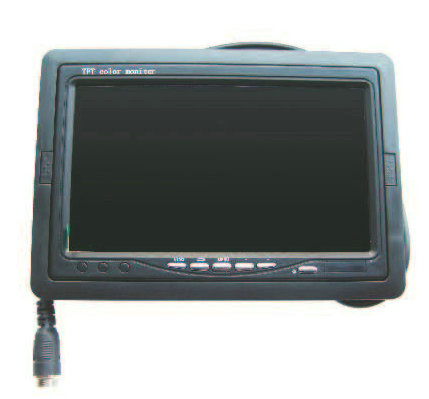

Monitor
1. monitor size： 7inch TFT color monitor
2. monitor Total Pixels：1440X234
3. monitor power supply：DC 12V
4. osd language： english
5. up，down left，right adjustable
6. 16:9 4：3 model
7. sunshade includ
8. waterproof connector
9. Work temperature：-10℃-50℃
DVR
1. DVR power supply： 12V
2. DVR work current: 200MA
3. storage medium：SD card （max 32G）
4. dagital clock and dagital calendar
5. DVR Total Pixels： 720X576 (D1)
6. picture snap and movie record
7. movie format： AVI
8. audio record (yes)
9. double earphone output

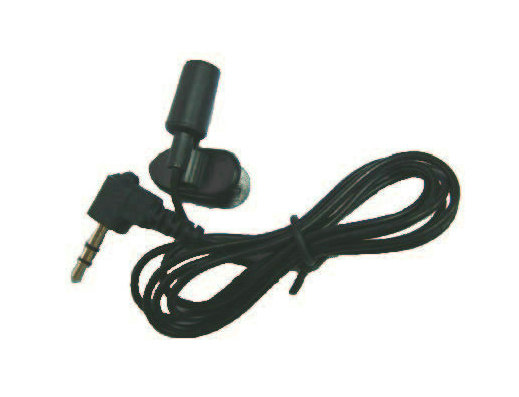

Audio input unit
1. micphone
2. clip type

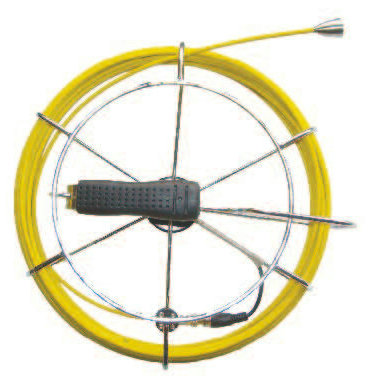

Cable wheel
Cable size：320MM(diameter)X110(h)
Wire material： fiberglass rod
Fiberglass length：30M( standard)
Fiberglass diameter：4.8MM
Fiberglass color：yellow

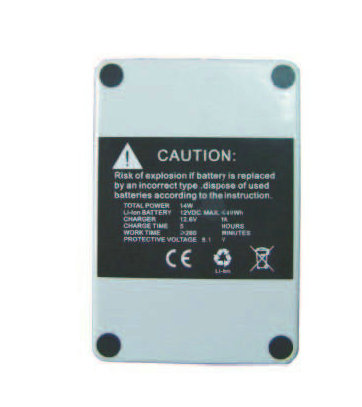

Battery
Battey pype： 12V 4000MAH
rechargable li–ion battery（18650）
Tatal work time 4 hours

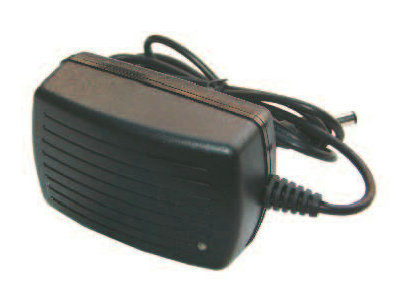

Charger
input： AC90-260V
output： DC 12V 1000MA
Output cable length：1.5M
DC plug diameter ：2.1MM

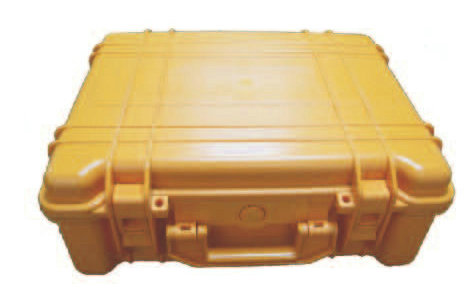

Box
box material：Engineering plastics
Box size：L520XW435H200mm

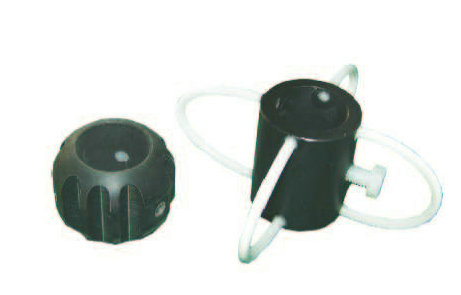

SKIDS
1. SKIDS1：material POM Φ40MM
2. SKIDS2：material POM Φ80MM
Weight and cartoon size
net weight： 11.5KG Single
gross weight： 12.5KG Single
|
