Products >> Pipe Inspection >> 710DNC Pipe inspection camera system with 30M cable

710DNC Pipe inspection camera system with 30M cable Details

Specification

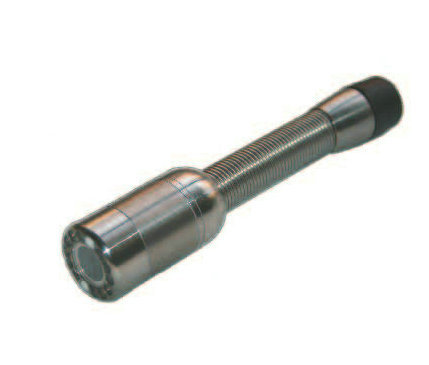

Camera


1. camera size:23mmx120mm   front size:45mm
2.Camera case material:stainless steel house stainless steel 304
3. Camera glass material:sapphir glass
4. sensor size:1/4 inch
5.Total Pixels:PAL:720X576    NTSC: 720X480
6. view angle:120°
7. camera light:12PCS white LEDS
8. Special gold point touch connector
9. waterproof:IP68
10.camerawork current:100MA      camara power supply:DC 12V
11. LEDS ADJUASTABLE。
12.Work temperature:-10℃-50℃

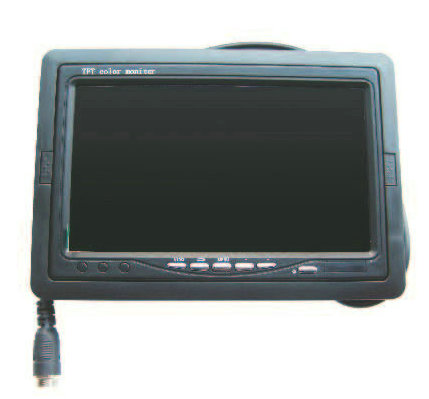

Monitor


1. monitor size:  7inch  TFT color monitor
2. monitor Total Pixels:1440X234
3. monitor power supply:DC 12V
4. osd language: english
5. up,down  left,right adjustable。
6. 16:9  4:3 model
7. sunshade includ
8. waterproof connector
9. Work temperature:-10℃-50℃
DVR


1. DVR power supply: 12V
2. DVR work current:  200MA
3. storage medium:SD card (max 32G)
4. dagital clock and dagital calendar
5. DVR Total Pixels: 720X576   (D1)
6. picture snap and movie record
7. movie format: AVI
8. audio record (yes)
9. double earphone output

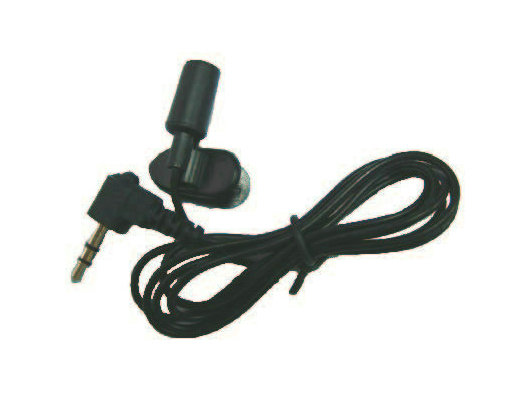

Audio input unit


1. micphone
2. clip type

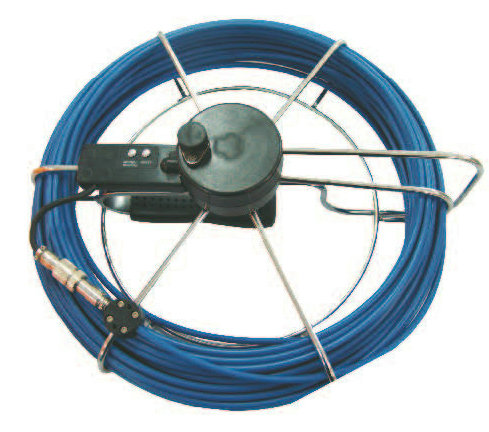

Cable wheel with Meter counter


Cable size:320MM(diameter)X110(h)
Wire material: fiberglass rod
Fiberglass length:20M( standard)
Fiberglass diameter:4.8MM
Fiberglass color:yellow

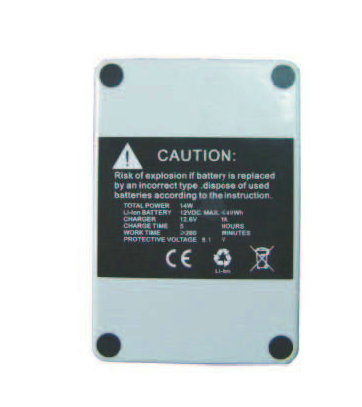

Battery


Battey pype:  12V 4000MAH
rechargable li–ion battery(18650)
Tatal work time :4 hours

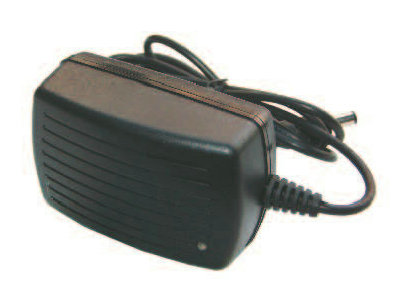

Charger


input: AC90-260V
output: DC 12V    1000MA
Output cable length:1.5M
DC plug diameter :2.1MM

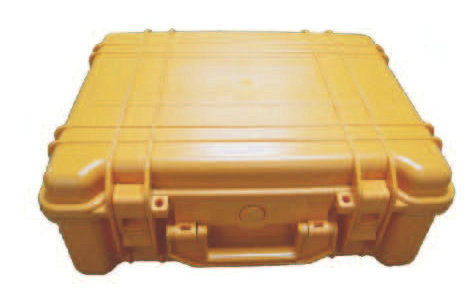

Box
box material:Engineering plastics
Box size:L520XW435H200mm

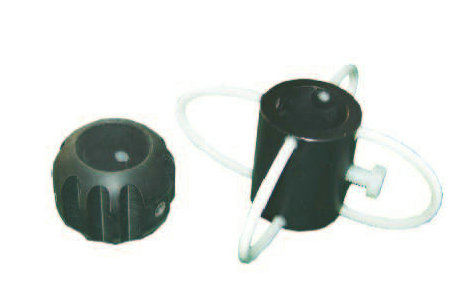

SKIDS

1. SKIDS1:material POM Φ40MM
2. SKIDS2:material POM Φ80MM

Weight and cartoon size


net weight: 11.5KG  Single
gross weight: 12.5KG Single
