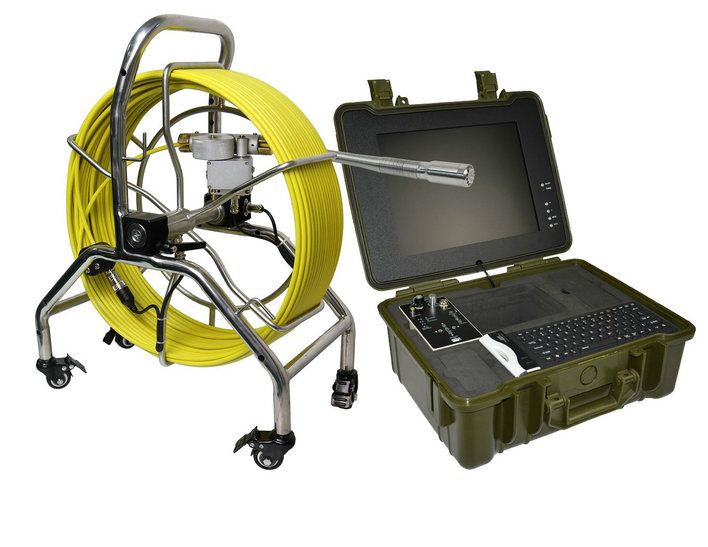

For drain and sewer inspections in longer runs of pipe, this drain and sewer inspection camera kit is supplied with a larger, upgraded camera and reel, designed to make more complex drain and sewer CCTV inspections easier. We have fitted this inspection camera system with an upgraded 28mm self-levelling camera and a larger 60 metre long fibreglass reel on a specialised stainless steel frame for ease of use. Housed in a professional ABS hard case, this drain inspection camera system is a complete kit, supplied ready for use.

Our drain camera heads are manufactured from aluminium alloy materials, which are a lightweight and extremely durable option, and the sapphire glass, which is used to cover the lenses on our cameras is an extremely hard material unlike the cheaper cameras which use lower quality materials, and ultimately will give reduced service life. We have also upgraded the control box to a newer style unit, which is far easier to use, and has a logical layout with a navigation keypad and main functions, such as LED brightness and recording in one place.

We have added a built in 512Hz sonde (radio transmitter) to the camera head, which allows a locator, such as one of our Radiodetection units from the RD7100 range, or our low cost locator to be used on the surface in order to locate the position of the camera head. With the camera's position located, the position of any pipe damage or blockages is known, which makes it easy to expose the section of drain or sewer pipe and clear any blockage or repair the pipe more efficiently. A lower frequency sonde (512Hz) enables the signal to pass through materials such as cast iron and ductile steel which will mask the signal from other sondes, and minimises the risk of the signal jumping onto other buried services.

The larger, upgraded 60 metre cable reel is manufactured from strong fibreglass to give flexibility and strength, and is wound onto a specialised reel system, manufactured from stainless steel for durability and portability. Our fibreglass rod is 7mm in diameter, which is necessary in longer cable reels to ensure that the operator maintains control of the camera over longer distances, as the thinner rods found on many systems will buckle when the camera is further away from the point of entry through drainage and sewerage pipes. We have also built a distance counter into our cable reel, which gives the user an on screen display of the length of cable inserted into the drain or sewer. when utilising this function, especially in conjunction with a locator, the distance to the problem can be easily available.

We supply this drain camera kit with a 28mm self-levelling camera, meaning that the image is the right way up every time, even in more complex pipe runs, as when the camera is pushed along tight turns, the rod can turn around through these bends. our camera is made from aluminium alloy and with a sapphire glass, which is hard and exceptionally durable. The camera head is IP68 waterproof rated, and also resistant to dust, dirt and sand making it suitable for use in and around water. Our camera is fitted with 12 LEDs for use in dark drains and sewer pipes, and these also have adjustable brightness, controlled from the main control box, to ensure that the image and videos are optimised for the conditions, allowing undetected details to be picked up. Our camera is fitted with a very wide angle lens, and allows for even closer and detailed inspections of drainage and sewer pipes than is afforded with standard field of view cameras. In order to keep the camera centred within the pipe and away from the pipe bottom which may have a build up of material, we supply the kit with a skid, which can be easily and quickly fitted to the camera head.

The real time video from the camera is displayed on the largest 15 inch digital colour screen, for maximum screen size in order to make viewing even small details much easier than the smaller screens found on many other systems., and the main menu functions are also driven from this monitor, making this a very easy to use drain cctv camera system, even without any prior instruction or training. The 15 inch screen works well with the higher specification cameras, and is larger than the 7 and 9 inch screens for more information, coupled with the best image resolution. This particular drain camera system can record video and save images to a SD card (up to 32GB), which is inserted into the control box card slot, and then can be downloaded to a PC and emailed to customers or included in reports.

We have also added a keyboard into the case, which allows the operator to easily add text and comments into videos and images for explanations and information relating to any potential issues and problems found by the camera.

Our system is powered by a rechargeable 12V Li-Ion battery pack for complete portability, giving a run time of more than approximately 4 hours per charge.

Please note that this reel is wound with our yellow cable which is more rigid than our flexible red cable, and is designed for distance. Should you have the need to deploy the cable around tighter bends and smaller pipes, please select the more flexible red cable system, which can be found by clicking HERE. The harder yellow cable cannot be deployed into an overflow relief gully (ORG) and must enter a sewer via an alternate method.



Features:

• Fully self-contained and portable drain and sewer CCTV system
• 60 metre long fibreglass camera cable on stainless steel reel
• Distance counter can display in metric or imperial units
• Self-levelling camera always keeps the image correctly orientated
• Built in 512Hz transmitter (sonde) in camera head
• Wide angle camera manufactured from aluminium alloy
• Sapphire glass lens cover for durability and long service life
• 28mm diameter camera fits even in smaller pipes
• New and improved control box for easy user operation
• Video Recording and Image Capture to SD card
• Largest 15 inch digital colour monitor
• Keyboard for inserting comments and information into images and videos
• 12 adjustable LEDs for colour imaging in dark pipes
• Very wide angle camera lens for close up imaging
• Rechargeable 12V Li-Ion battery pack
• On screen menu for access to functions
• Camera skid keeps camera head centred in pipe
• Full Australia wide warranty and support
• Range of spare parts in stock



Applications:

• Drainage and sewer pipe problems
• Blockages in plumbing systems
• Building and pest inspections
• Problems inside cavity walls
• Problems in water tanks
• Air conditioning ducts and HVAC systems
• Problems in underground ducts and conduits
